SM804

Without seat tilt adjustment

Compact aluminum seat carrier which can be delivered with a straight or bended adjustment lever.

Optional is a 3° wedge for backwards seat tilting and a rubber insert to eliminate noise of release system.

Type
mechanism without seat tilt adjustment

Seat angle
fixed seat angle 0°

Height adjustment
adjustment lever optional

Conus
28 mm

Finishing
polished (P)
black coating (B)
sand blasted (S)

Hole pattern
55x55 mm

Item numbers
Mechanism
polished» SM804P

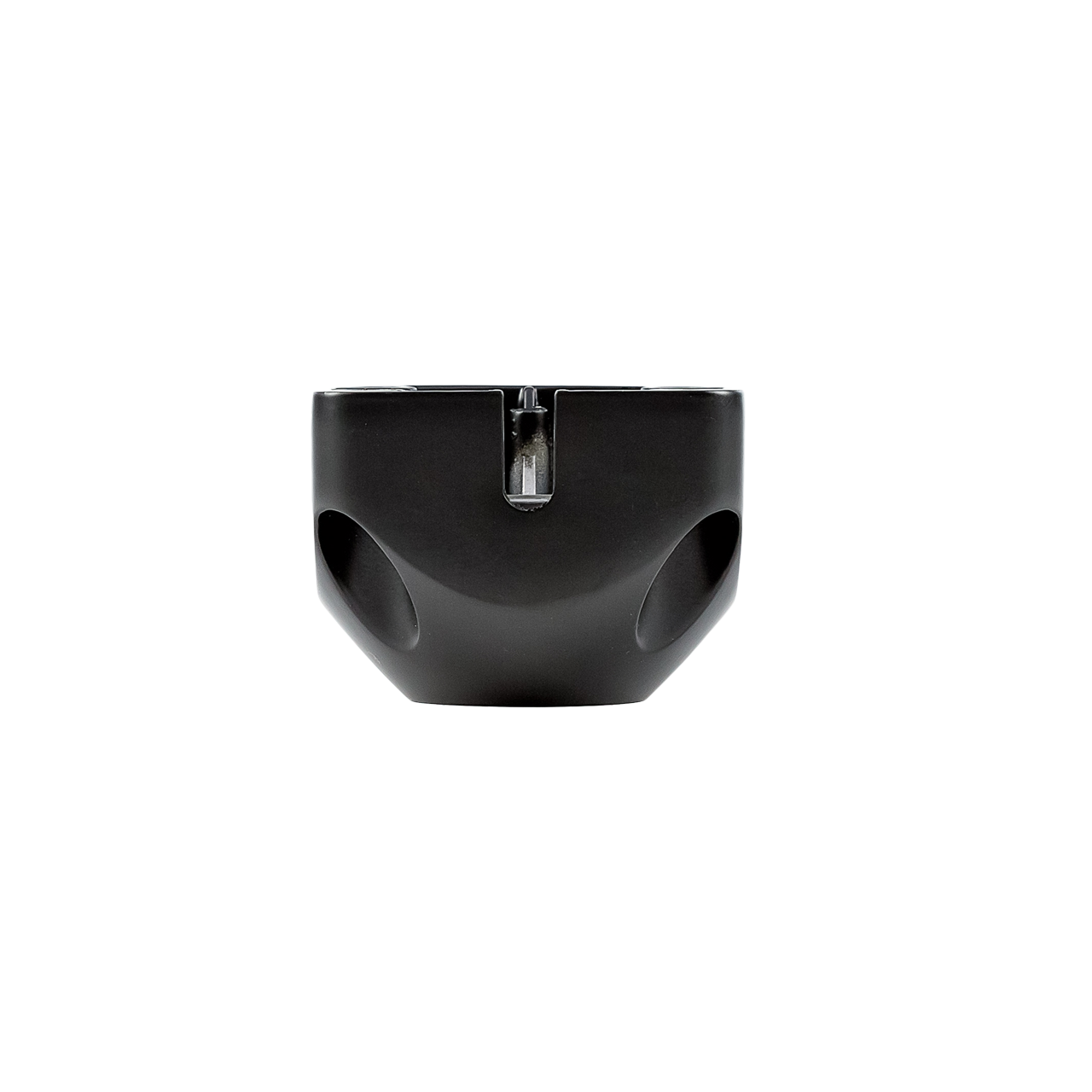

black » SM804B
sand blasted » SM804S

Adjustment levers
lever, straight, L 170 mm, zinc » AS405-170
lever, straight, L 170 mm, black » AS405-170-B
lever, straight, L 190 mm, zinc » AS405-190
lever, straight, L 190 mm, black » AS405-190-B
lever, straight, L 210 mm, zinc » AS405-210
lever, straight, L 210 mm, black » AS405-210-B
lever, bended, L 170 mm, zinc » AS405-170-22
knob, black nylon » AS503-A

Optional
nylon 3° wedge for seat tilting » PP907
rubber insert » AS507
